Version: v1.0 Previous Update: 05-12-2025

User Manual

Control ModuleTemplate –VLVOUT (Valve)

A high-end building block for Plant Wide Automation

Content:

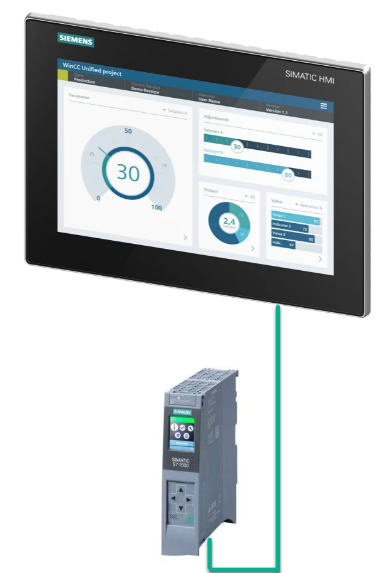

Siemens TIA Portal: PLC code + Program structure ready + HMI Unified graphic object + Pop-up graphic

Modern look and feel – scalable for plant wide professional applications

Operator example -


Development example -

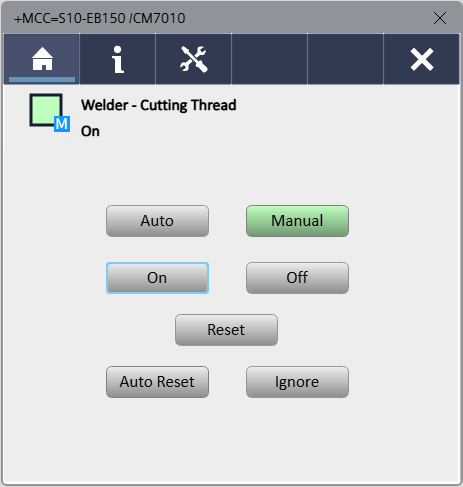

Pop-up Graphics -

Anchor your knowledge, organize, structure and scale up your automation capacity:

Version

Version
Date
Initials
Description
1.0
05-12-2025
SSA
Document created & Update
















Abbreviations

HMI
Human Machine Interface – Any interaction between machine and operator
IO
Electrical Input and Output signals to the control unit (PLC/CPU)
DIN
Electrical Digital Input signal, typical 24 VDC.
AIN
Electrical Analog Input signal, typical 0-20 mA, 4-20 mA or 0-10V DC
AOUT
Electrical Analog Output signal, typical 0-20 mA, 4-20 mA or 0-10V DC
MTR
Electrical Control of a Motor with a fixed speed – Direct Online
FRQ
Frequency Inverter – Controlling a variable speed motor
VLV
Valve Control or Digital Output (Ex. Operating a coil or turning equipment On or Off.
PID
A Proportional–Integral–Derivative controller is a  widely used in  and a variety of other applications requiring continuously modulated control.
UN
Unit – A collection of EM’s and/or CM’s that controls a machine functionality ex. a conveyor section or the wrapper.
EM
Equipment Module – A collection of CM’s that controls a small machine part or machine section – ex. hoist motors to lift the stretch film rollers.
CM
Control Modules are single devices which are electrically controlled and represent Motors, Valves, Inputs or Outputs.
FP
Face plate – ex. (CM) control modules are controlled by faceplates represent Motors, Valves, Inputs or Outputs and their status as well as tools for analysis during operation.
SP
Set Point – Process request to obtain or aim at this value.
PV
Process Value – Process feedback value at this current time = actual value.
CV
Control Value – Process regulation value used to adjust/increase or decrease due to an error between the SP and the PV for the given process.
+MCC
Main control cabinet

Preface

The Package contains the Control Module library, Sample Project, Documentation, Tutorial Video to configure Valve Digital Outputin PLC and HMI.

Contents
