Version: V1.1 Previous Update: 22-01-2025

Preface

The document describes the procedure for creating user administration in TIA Unified HMI.

Compatibility

TIA Portal V19

TIA Unified HMI V19

Import Control Module Library

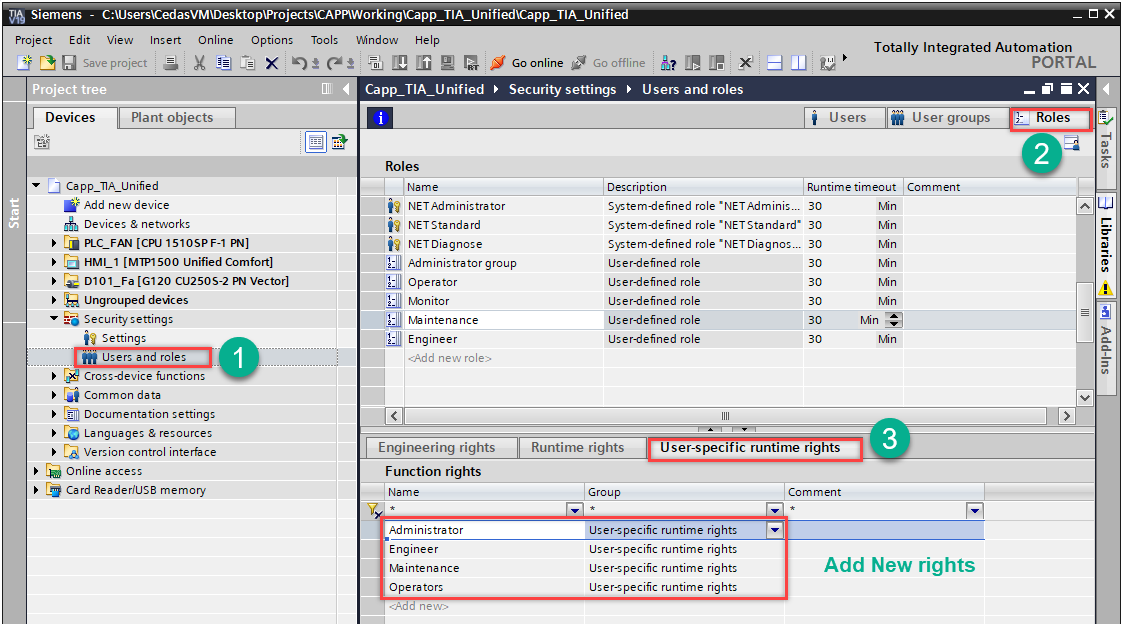

Create User-Specific runtime rights

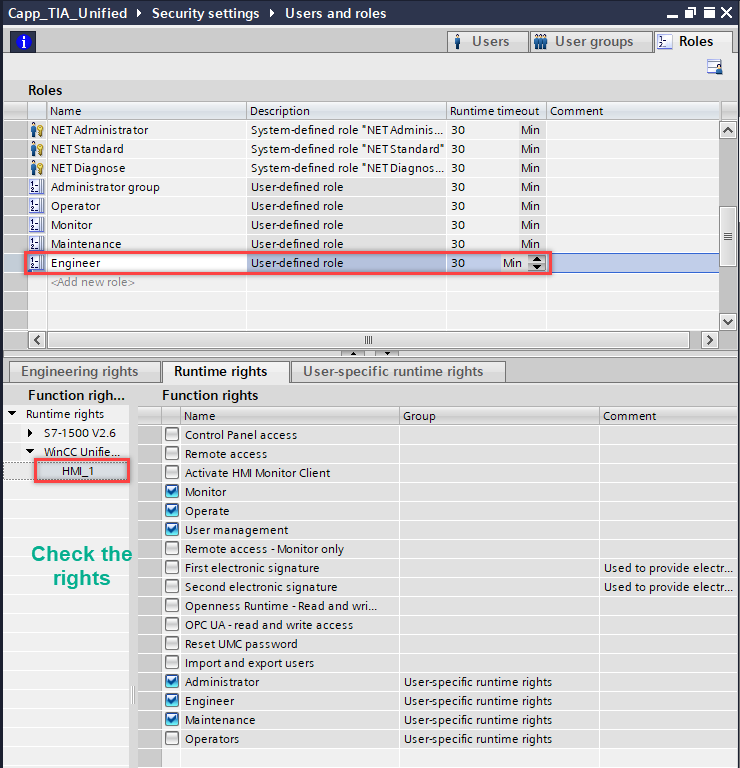

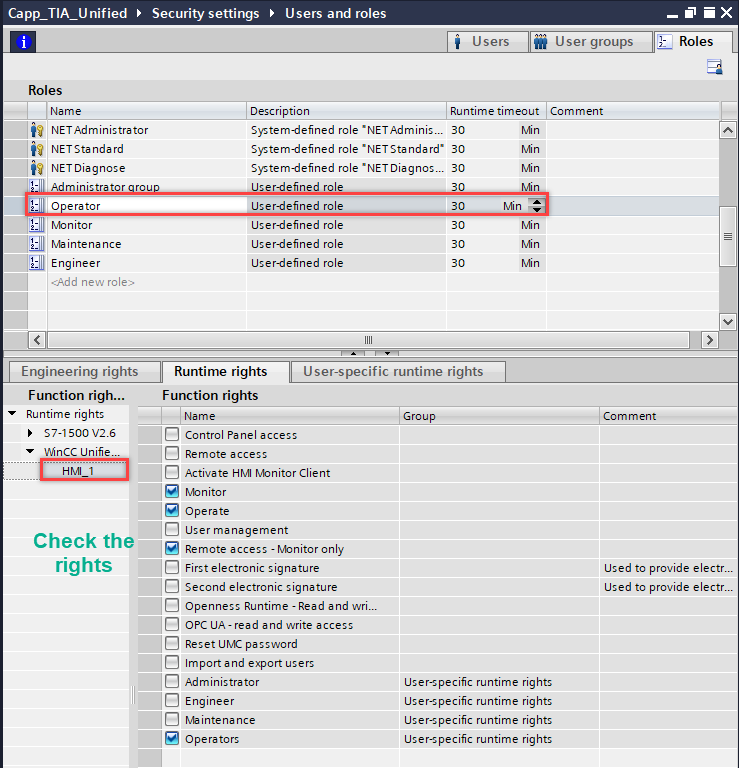

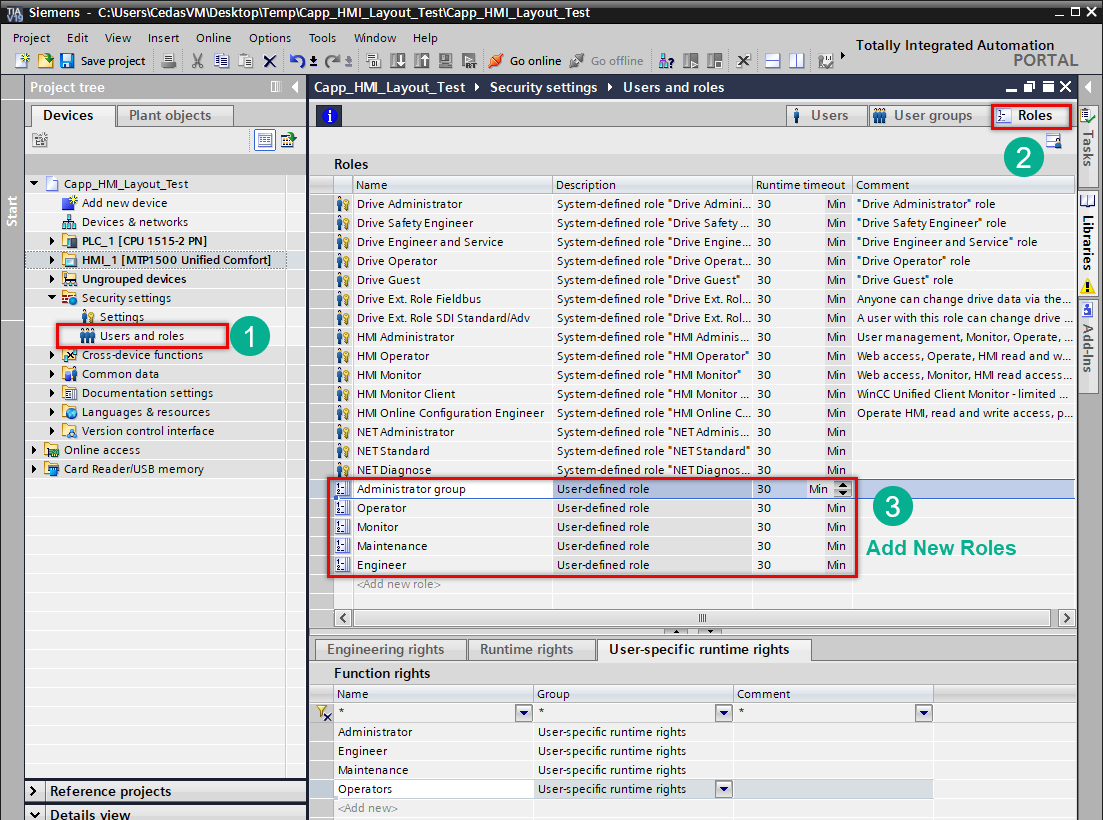

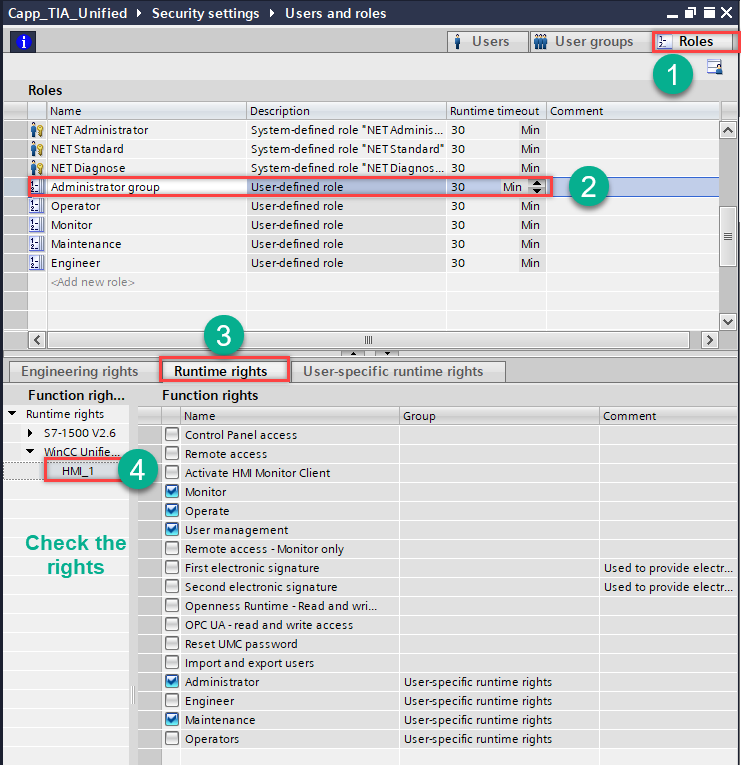

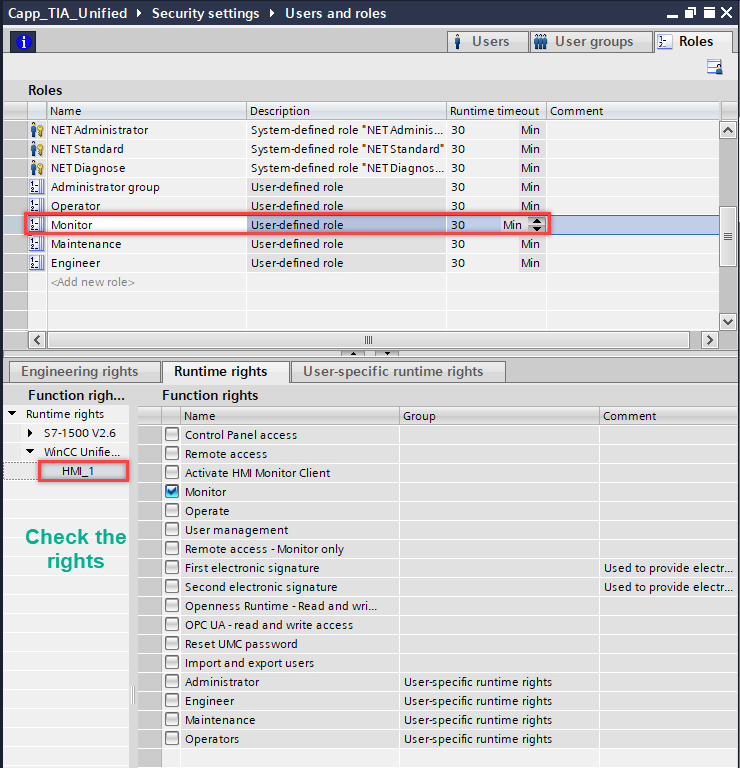

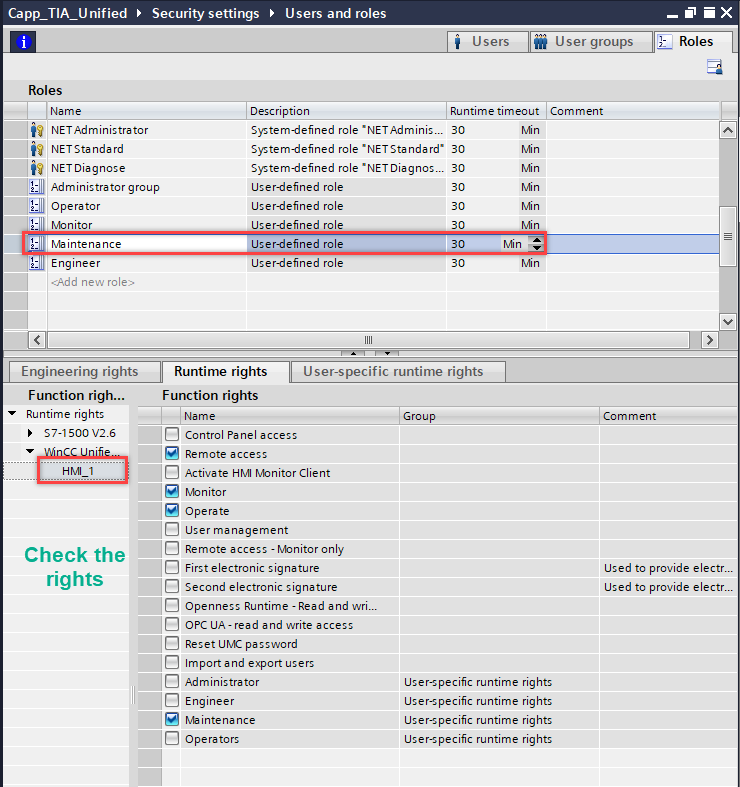

Create Roles and assign Function rights

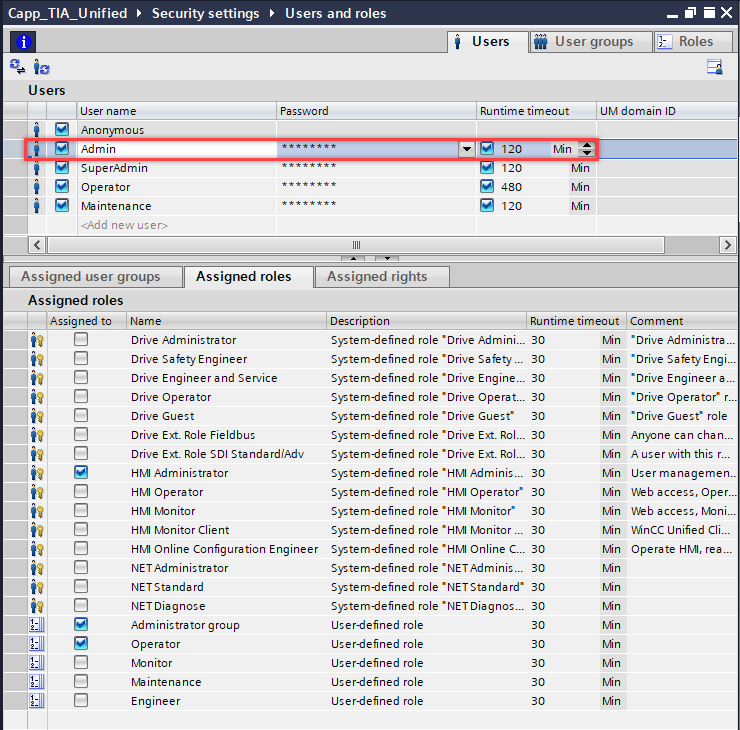

Create Users and Assign roles

User levels are divided into the five user groups below. Find passwords related to the listed users.

	Siemens Predefined access		Operate	Remote access	User Management
	User defined access				Administrator	Engineer
	Username	Password
1	Operator	Operator123	Yes	No	No	No
2	Maintenance	Maint123	Yes	Yes	No	No
3	Admin	Admin123	Yes	Yes	Yes	No
4	SuperAdmin		Yes	Yes	Yes	Yes

Each action on the HMI screens is configured with various access levels. The assigned codes are cross-referenced with the table above to determine the rights of the logged-in user.

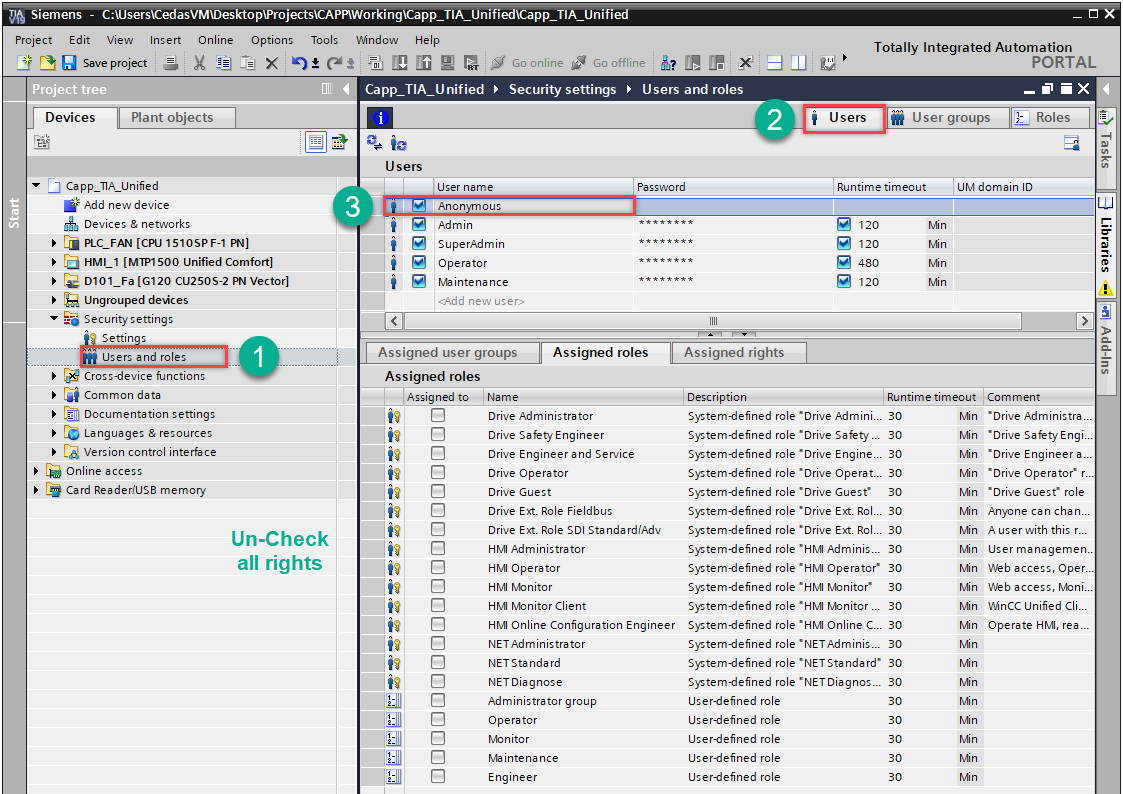

For Anonymous user: don’t give any access rights
